- Stock: Pre-Order
- Model: BMT1300DI
- Weight: 369.00kg
- Dimensions: 2,950.00cm x 850.00cm x 1,240.00cm

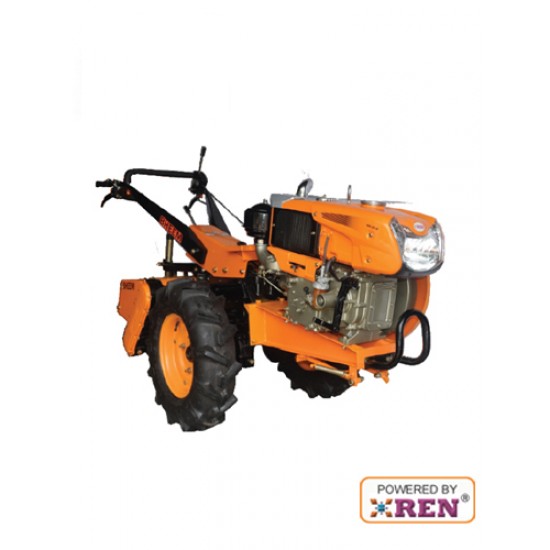

BHEEM Power Tiller is a compact Self Propelled tiller powered by Reliable VST 13 hp Direct injection Diesel engine, with separate drive for vehicle propulsion and rotovator. It is a multipurpose machine with six forward and 2 reverse gears and a separate 2- speed gears for rotovator. This is a unique machine with Side drive rotovator and with 18 Tynes. It is fitted with a high speed rotovator for best soil pulverization. BHEEM Power Tiller is with salient features like compactness, light in weight, easy to operate and has ample output to suit Indian farming conditions. The high power to weight ratio along with the compactness makes it a more versatile machine. It has been ruggedly built to suit Indian Farming conditions
BHEEM Power Tiller is suitable for paddy fields (Wet land puddling), Dry fields and vegetable fields for various operations like land preparation, Intercrop weeding, Ridging, Bund Forming, Haulage etc..
Features:
- Durable VST Diesel Engine
- Water Cooled
- Easy Handling
- 6 Forward, 2 Reverse Gears
- Multi plate clutch
- Oil Lubricated Gearbox
- 2 Speed Rotovator
- Suitable for all Wet land & Dry land operations
| Engine | |
| Air Filter Type | 3 - stage oil bath air filter |
| Bore x Stroke | 96 X 97 |
| Brake | Wet type |
| Compression ratio | 18 : 1 |
| Displacement | 709 CC |
| Engine. | Single Cylinder, Water Cooled Diesel engine |
| Fuel Tank Capacity | 14 Lit |
| Lubrication | Pressure lubrication with Trycohid pump |
| Oil Capacity | 2.8 lit |
| Rated Power | 13 HP |
| Rated Speed | 2400 RPM |
| Starting Method | Hand Cranking |
| Wheel Size | 6. 00 x 12, 6 ply |
| Transmission | |
| Clutch. | Multi disc friction type |
| No. of Tynes | 18 |
| Rotovator | Center Chain drive |
| Rotovator Speed | 2 speed, High - 385 rpm, Low - 260 rpm |
| Suitable Applications | Dry Land Tilling and Weeding Also for Wet Land Puddling |
| Tilling Width | 600 mm |
| Transmission Gears | 6 Forward & 2 reverse |
